Product Description:

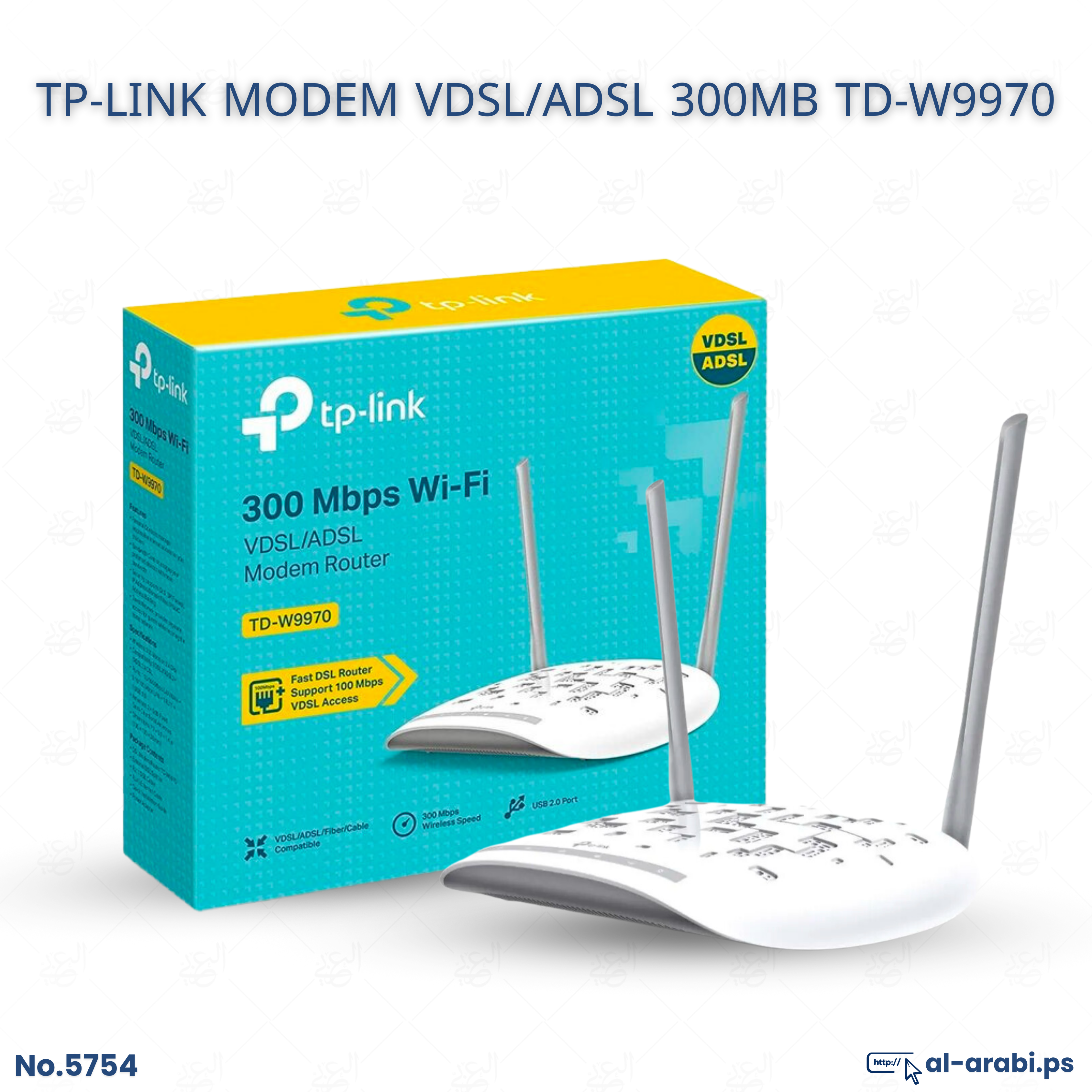

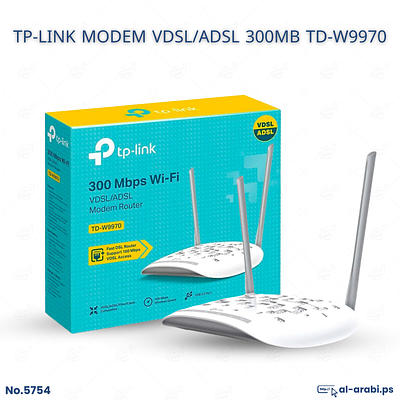

TD-W9970 Wireless N USB VDSL/ADSL Modem Router - 300Mbps
The TD-W9970 router has been designed for sharing Internet connection provided by ADSL Annex A technology. It has built-in ADSL / VDSL modem compatible with ADSL/ADSL2/ADSL2+/VDSL2, Access Point works in IEEE802.11b/g/n standards enabling transmission speed up to 300Mb/s and 4-port switch. The WAN port assembled as RJ11 socket connects directly with telephone line.
The distinctive feature of the device is support for 802.11n standard - capability of using data transfer speeds up to 300Mb/s. The TD-W9970 ensures advanced access control and NAT, its DHCP server supports static assignment of IP addresses. The device also supports virtual servers, DMZ zone, remote logging and management.
Frequency range : 2.4 ... 2.4835 GHz
Standards : IEEE 802.11 b/g/n
(LAN ports : 4x RJ-45 ( 10/100 Mbps, Auto MDI/MDX
WAN interface: 1x RJ-11
ADSL / ADSL2 / ADSL2+ / VDSL / VDSL2
Transmitter power: < 20 dBm
Baud rates : * 300 Mbps - Wi-Fi
100 Mbps - LAN *
Operation modes: Access Point
Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T
G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T
G.995.1, ITU-T G.996.1, ITU-T G.997.1, ITU-T K.2.1
(ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis
ITU-T G.992.5
(ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP
DHCP server *
Port USB: * Sharing drives or printers and other devices
Local access to data or via FTP server *
Firmware update *
DDNS *
Protections: * LAN : Firewall, MAC addresses filtering, IP addresses filtering, parental control, LAN ACL
WLAN : WEP 64/128-bit, WPA-PSK/WPA2-PSK, TKIP/AES *
Management interface: Web browser
Operation temp: 0 °C ... 40 °C
%Permissible relative humidity: max. 90
(Power supply: | 12 V DC / 1 A (power adapter included
Dimensions: 195 x 133 x 36 mm
Manufacturer / Brand: TP-LINK
Guarantee: 2 years
