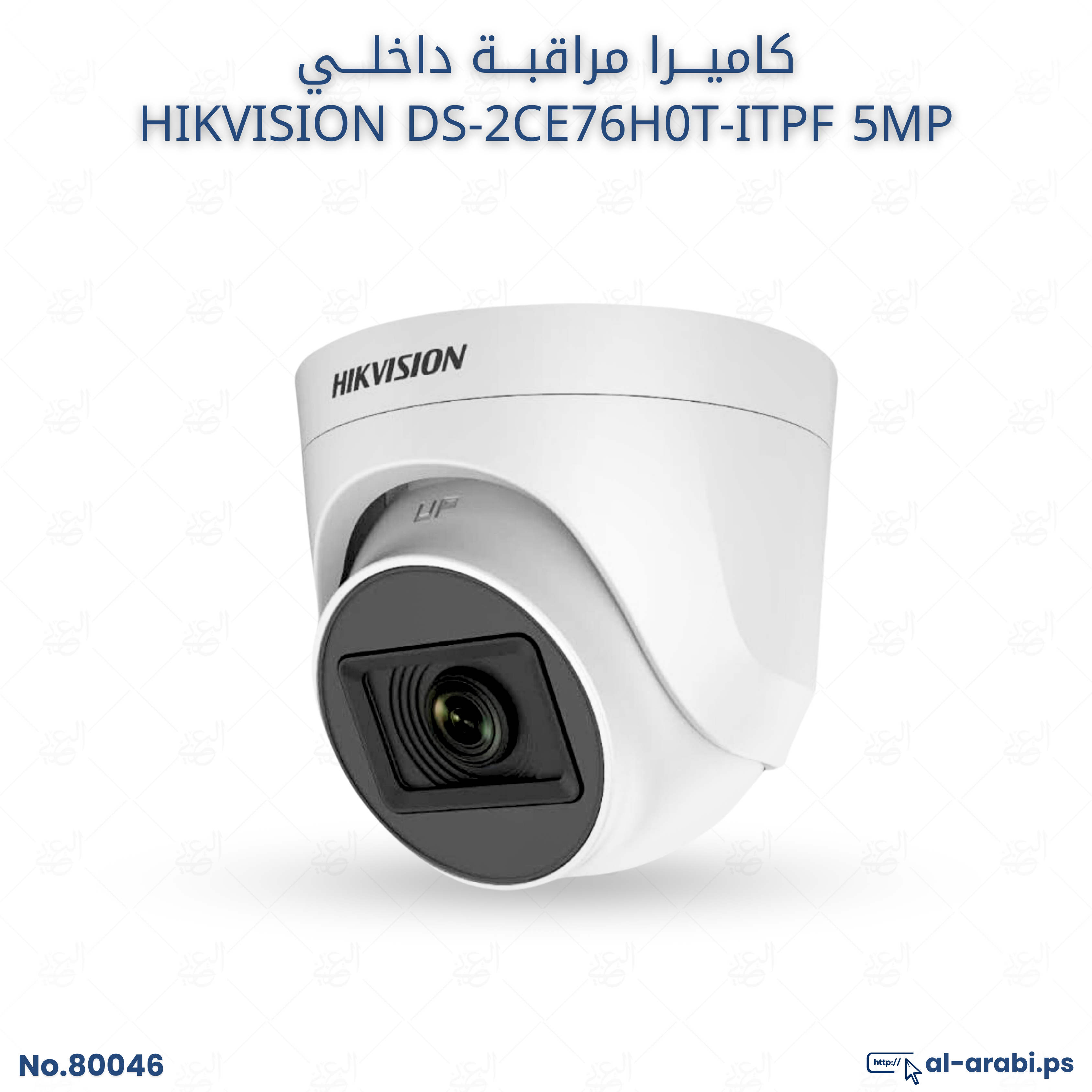

Product Description:
Image and Resolution
Sensor: 5 Megapixel CMOS image sensor.
Max. Resolution: 2560 \times 1944 (5 MP resolution).
Min. Illumination: 0.01 Lux for Color, 0 Lux with Infrared (IR).
Wide Dynamic Range (WDR): DWDR (Digital Wide Dynamic Range).
Image Enhancement: Supported by BLC, HLC, and DNR technologies.
Lens and Night Vision
Lens Type: Fixed focal lens, available in four focal length options: 2.4 mm, 2.8 mm, 3.6 mm, and 6 mm.
Field of View (FOV):
2.4 mm: Horizontal 103 (Widest angle).
2.8 mm: Horizontal 86.
Day/Night Mode: ICR (IR Cut Filter) technology with Auto/Color/BW mode.
Video and Compatibility
Frame Rate (TVI): 5 MP @ 20 fps.
Video Output: Switchable between formats: TVI/AHD/CVI/CVBS (Multi-technology support).
General Features
Material: Plastic.
Power: 12 VDC \pm 25%.
Operating Conditions: Very wide range from -40 C to 60 C.
