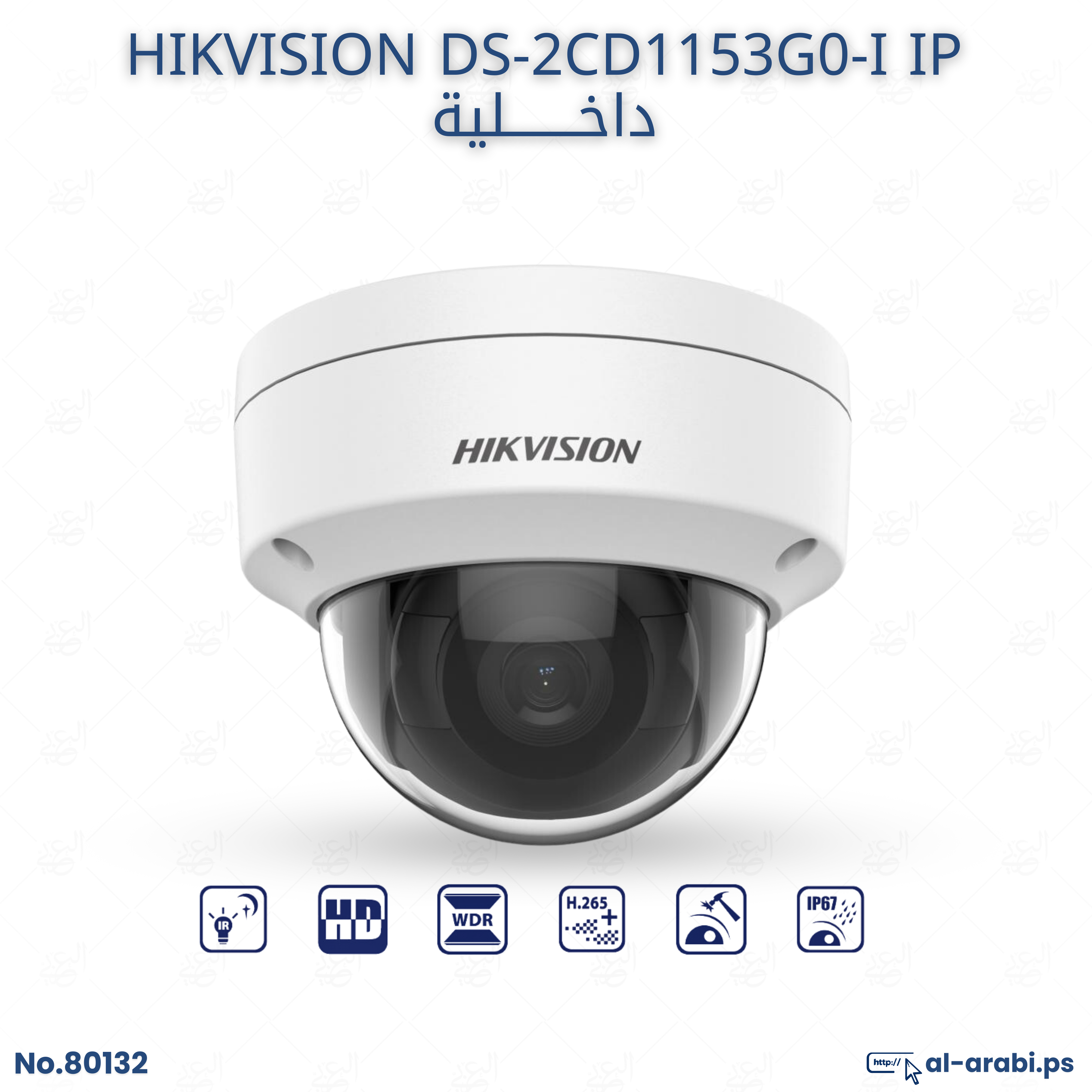

Product Description:
Image and Resolution
Max. Resolution: 2560 \times 1920 (Approx. 5 Megapixels).
Sensor: 1/2.7 Progressive Scan CMOS.
Wide Dynamic Range (WDR): 120 dB, ensuring image clarity in strong backlight conditions.
Min. Illumination: 0.01 Lux for Color, and 0Lux with Infrared (IR).
Image Enhancement: Supported by BLC and 3D DNR technologies.
Lens and Night Vision
Lens Type: Fixed focal lens, with two focal length options: 2.8 mm (98.0 wide horizontal FOV) or 4 mm.
Night Vision Range (IR): Up to 30 m.
Aperture: F2.0 (Fixed aperture).
Video and Network
Main Stream Frame Rate:
20 fps at 2560 \times 1920 resolution.
25/30 fps at 2560 \times 1440 (4MP) or 1920 \times 1080 (Full HD) resolution.
Video Compression: Supports advanced formats like H.265+/H.265.
Connectivity: 10/100M Ethernet port, and supports ONVIF protocol.
Power and Physical Protection
Power: Supports operation via PoE (802.3af) in addition to 12 VDC power.
Vandal-proof Resistance: IK10 rating, providing high resistance to impact.
Weather Resistance: IP67 rating, making it water and dust resistant, suitable for outdoor use.
Operating Conditions: Operates in a wide temperature range: from -30 C to 60 C
