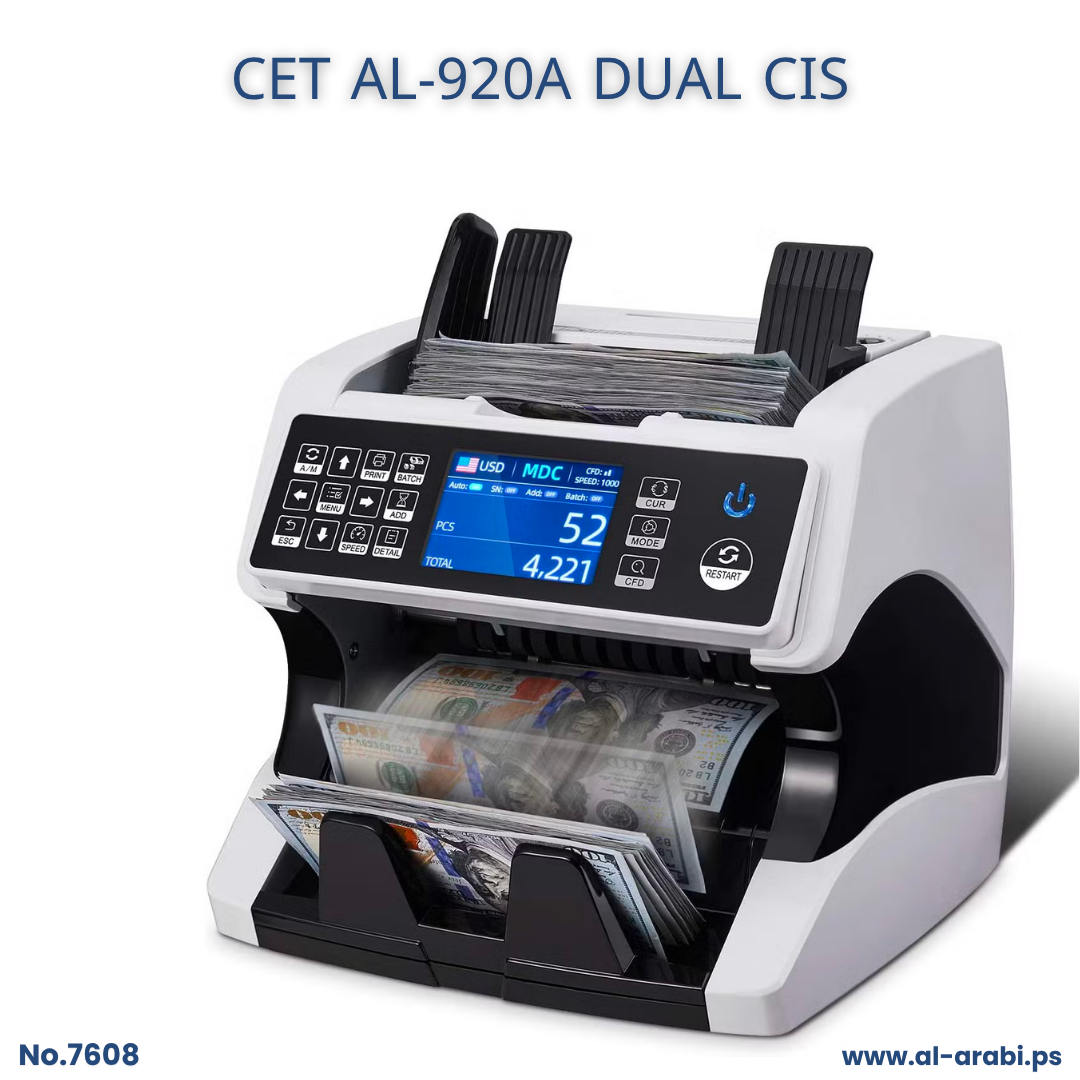

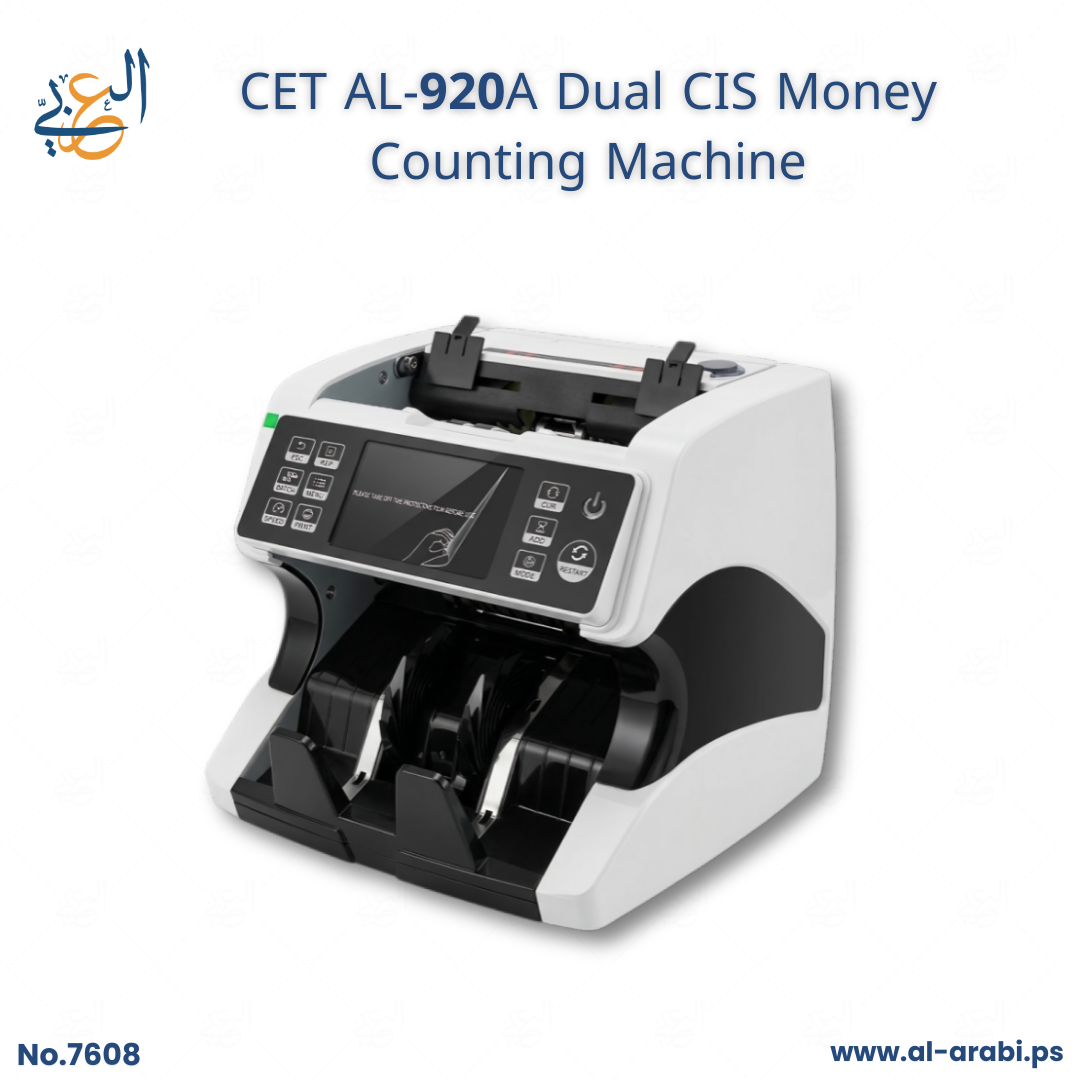

Product Description:
Technical Specifications
-
Counting Speed: 800 / 1000 / 1200 / 1500 notes per minute
- Counterfeit Detection System:
Dual CIS sensors (front and back image scanning)
Ultraviolet (UV) detection
Infrared (IR) detection
Magnetic (MG) detection
Mixed Denomination Counting:
Can count multiple currencies or mixed denominations together and display the value of each.
-
Serial Number Reading:
Supports reading serial numbers for currencies such as USD, EUR, and GBP.
- Counting Modes:
CNT — Normal counting
SDC — Single Denomination Count
MDC — Mixed Denomination Count
Batch mode
Add (accumulation) mode
Detection of defective notes:
Half notes, double notes, chained notes.
-
Interfaces: USB and RS-232 LAN.
-
Automatic Currency Recognitin:
Supports auto-recognition for up to the first 5 preset currencies.
-
Optional Features:
External customer display, printer.
-
Hopper Capacity: Approximately 400–500 notes
-
Stacker Capacity: About 200 notes
-
Acceptable Note Size: From 110×60 mm to 185×90 mm
-
Note Thickness: Approximately 0.08–0.12 mm
-
Power Supply: AC 100–240V, 50/60Hz
-
Power Consumption: Less than 50W (according to some sources)
-
Dimensions: Approximately 28 × 26 × 27 cm
-
Weight: About 6.5 kg net, 7.5 kg gross
-
Operating Temperature: 0°C to 35°C
-
Recommended Humidity: 20% to 90% (non-condensing)
