Product Description:

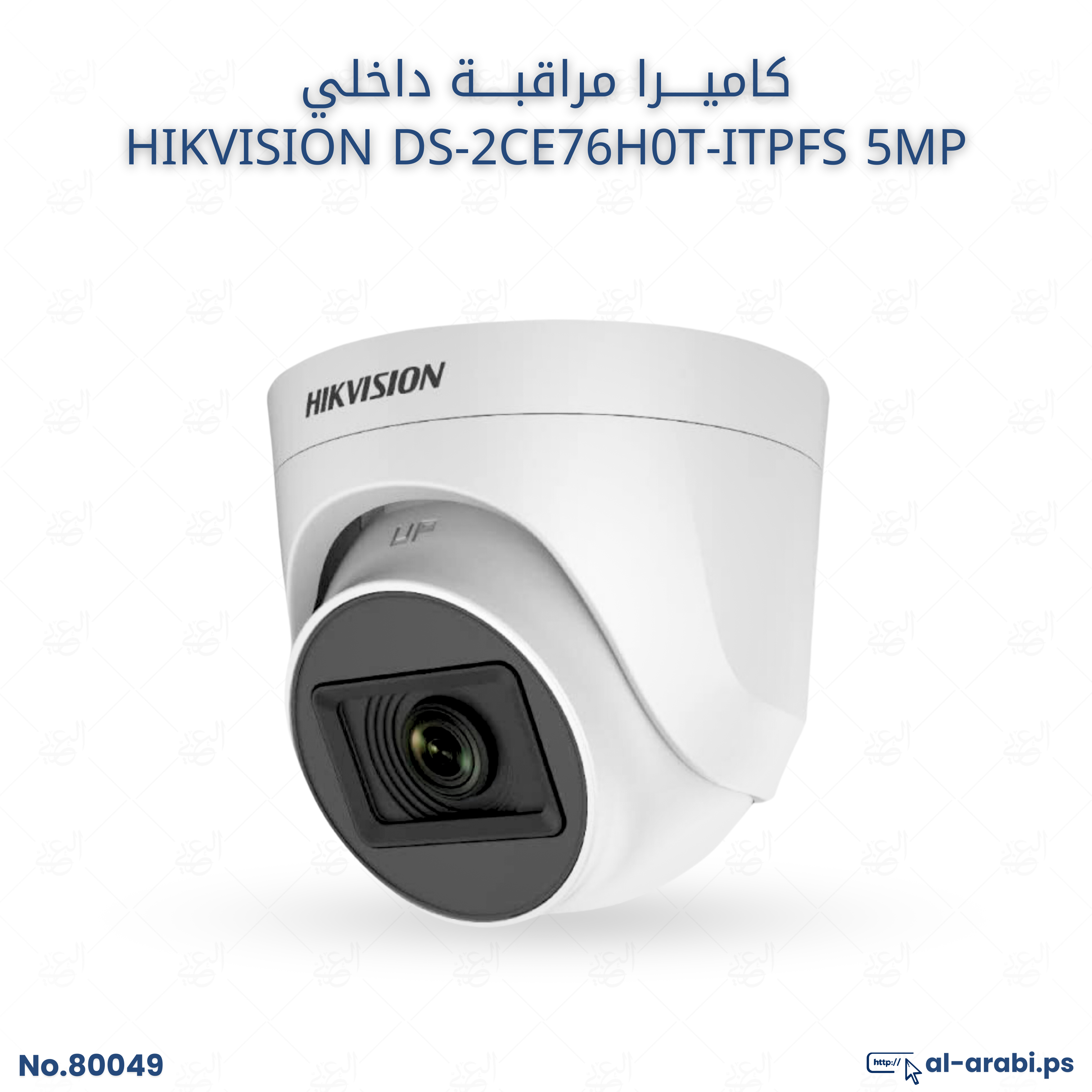

HIKVISION DS-2CE76H0T-ITPFS Specifications
Type & Technology: High-performance Turbo HD (Analog) camera.
Max Resolution: 5 Megapixels (2560 \times 1944).
Frame Rate (fps): 20 fps at 5MP resolution, and 25/30 fps at 4MP and lower resolutions.
Camera Design: Turret type, small-sized and primarily designed for Indoor installation.
Microphone: Built-in mic with audio transmission via Coaxial Cable (Audio Over Coax - AoC).
The suffix -FS in the model number indicates the presence of the microphone.
Lens: Fixed Lens, available in options such as 2.8 mm (wide field of view) or 3.6 mm.
Night Vision (IR): Standard IR technology with a range of up to 20 meters.
Dynamic Range (WDR): Digital WDR (DWDR), not True WDR (suitable for locations with moderate lighting contrast).
Video Output: 4-in-1 switchable video output (TVI/AHD/CVI/CVBS), ensuring wide compatibility with most DVRs.
Power: 12 VDC only (Does not support PoE, as it is an analog camera).
Weather Resistance: IP67 rating (Water and dust resistant).
Key Features: DNR (Digital Noise Reduction) for cleaner images at night.
Key Features (-ITPFS)
The suffix -ITPFS indicates the following:
Small Size (P): Compact and space-saving design.
Built-in Microphone (FS): Records both video and audio over the same Coaxial Cable, simplifying installation and reducing wiring.
