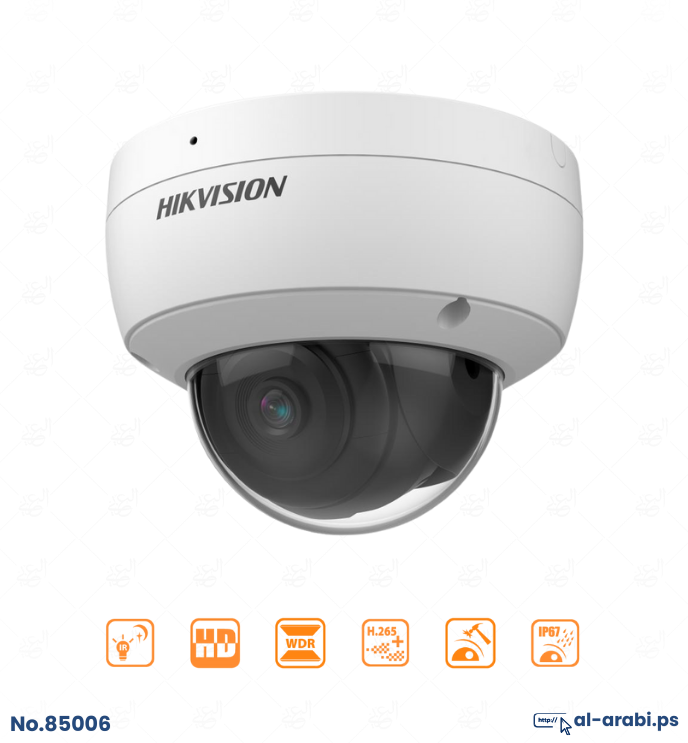

Product Description:
Image and Resolution
Sensor: 1/2.7" Progressive Scan CMOS.
Max. Resolution: 2560 \times 1920 (Approx. 5 MP resolution).
Wide Dynamic Range (WDR): 120 dB, ensuring clarity in strong backlight.
Min. Illumination: 0.01 Lux for Color, 0 Lux with Infrared (IR).
Image Enhancement: Supported by BLC and 3D DNR.
Lens and Night Vision
Lens Type: Fixed focal lens, with two focal length options: 2.8 mm (98.0 wide horizontal FOV) or 4 mm.
IR Supplement Range: Up to 30 m.
Aperture: F2.0 (Fixed).
Video, Audio, and Storage
Frame Rate (Main Stream):
20 fps at 2560 \times 1920.
25/30 fps at 2560 \times 1440 (4MP) or 1920 \times 1080 (Full HD).
Video Compression: Supports advanced formats like H.265+/H.265.
Built-in Microphone: Yes.
Environment Noise Filtering: Supported.
On-Board Storage: microSD card slot supporting up to 256 GB.
Network and Protection
Connectivity: 10/100M Ethernet port, and supports ONVIF protocol.
Power: Supports PoE (802.3af) in addition to 12 VDC power.
Vandal-proof Resistance: IK10 rating, providing high impact resistance.
Weather Resistance: IP67 rating, making it water and dust resistant.
Operating Conditions: Operates in a wide range from -30 C to 60 C
